What is a protocol gateway?

A protocol gateway translates communication protocols between field devices and centralized systems like SCADA, cloud services, or enterprise software.

Why are protocol gateways used in industrial automation?

Industrial systems have devices from different vendors using different protocols. A gateway lets them exchange data through a single, unified interface.

Can protocol gateways connect legacy equipment to AWS, Azure, or other clouds?

Yes. They translate legacy protocols into modern standards like OPC UA, MQTT, or HTTPS for secure connections to AWS, Azure, or private cloud systems.

How do protocol gateways improve security?

They add a secure layer by encrypting traffic, providing secure remote access to PLCs via VPN/virtual connections, and centralizing access control instead of exposing each device directly.

How many devices can a protocol gateway support?

It depends on the model and bandwidth. Industrial gateways typically handle multiple PLCs, sensors, or meters per unit.

How do I manage protocol gateways remotely across multiple sites?

Use EdgeHub, a centralized platform for remote configuration, OTA updates, status monitoring, alarm notifications, and VPN setup across all deployed gateways.

A collage of several images of protocol gateway applications

Why Security and Centralized Management Matter Today

In today’s industrial world, real-time risk management and operational efficiency have become critical. At the same time, many plants still operate heterogeneous environments with legacy machines, incompatible protocols, and few built-in security features.

Top 5 Challenges in Industrial Digital Transformation

Connecting decades-old equipment to modern infrastructure presents several challenges:

Cloud connectivity gap: Legacy machines lack built-in functions to communicate securely with SCADA, AWS, Azure, or private clouds.
Protocol fragmentation: Diverse communication standards (Modbus, DNP3, BACnet, IEC-60870, etc.) prevent seamless data flow.
Remote access risks: Field PLCs often have no secure tunnel for remote maintenance or troubleshooting.
Management complexity: Sending OTA updates, configuration changes, or status checks across many gateways and sites is labor-intensive.
Lack of real-time alerting: Older devices cannot self-report errors or trigger centralized alarm notifications.

How Advantech ECU Protocol Gateways Address These Challenges

A Protocol Gateway acts as an intelligent translator and secure bridge at the edge. It converts various industrial protocols into standardized formats, such as MQTT or OPC UA, enabling SCADA, MES, and cloud platforms to process data without changing existing machines.

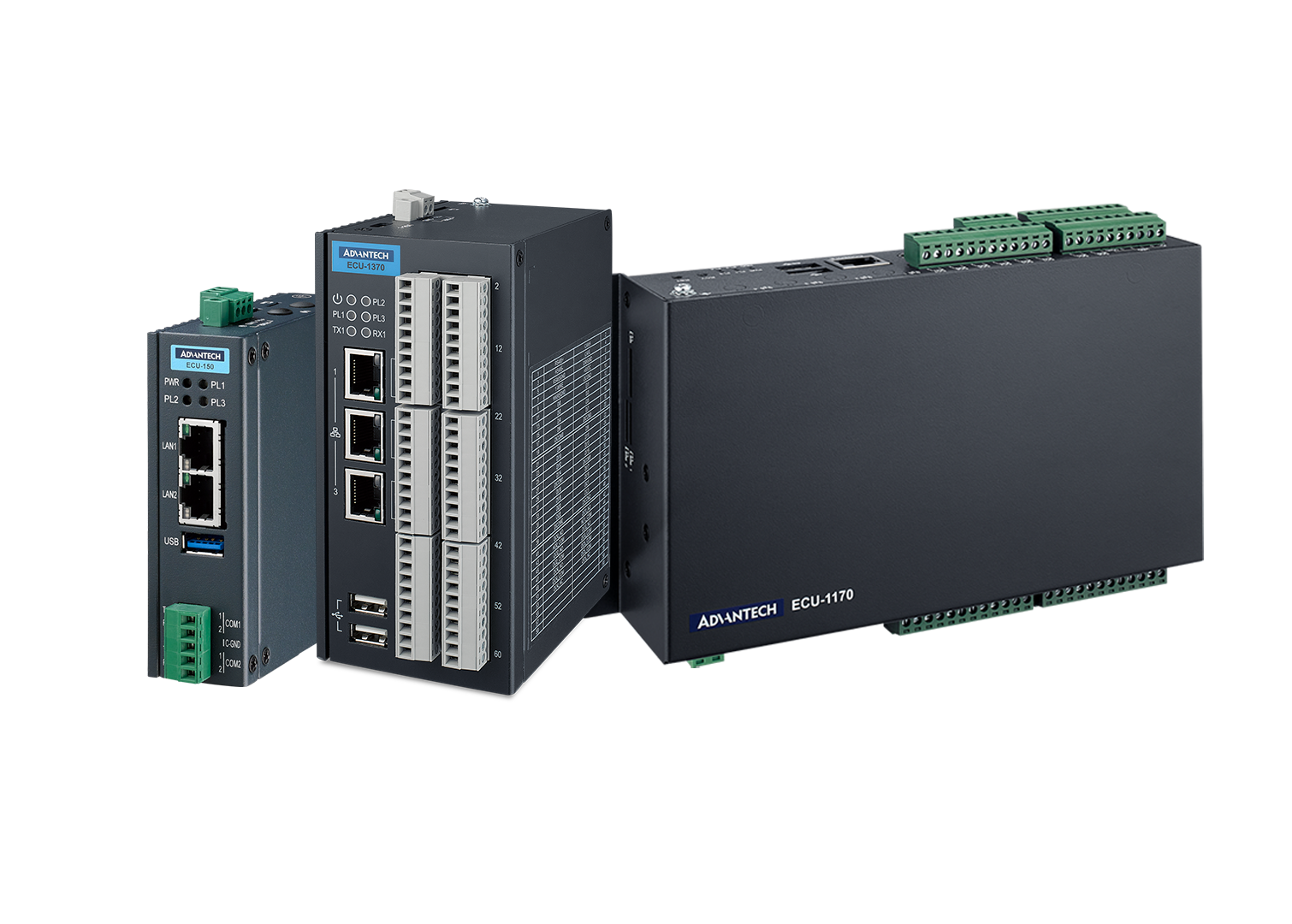

ECU Protocol Gateway

The Advantech ECU-1000 series connects PLCs and diverse field devices to central systems, with EdgeHub enabling secure remote management, including configuration, VPN, OTA updates, and real-time monitoring.

Core Features of ECU Protocol Gateways

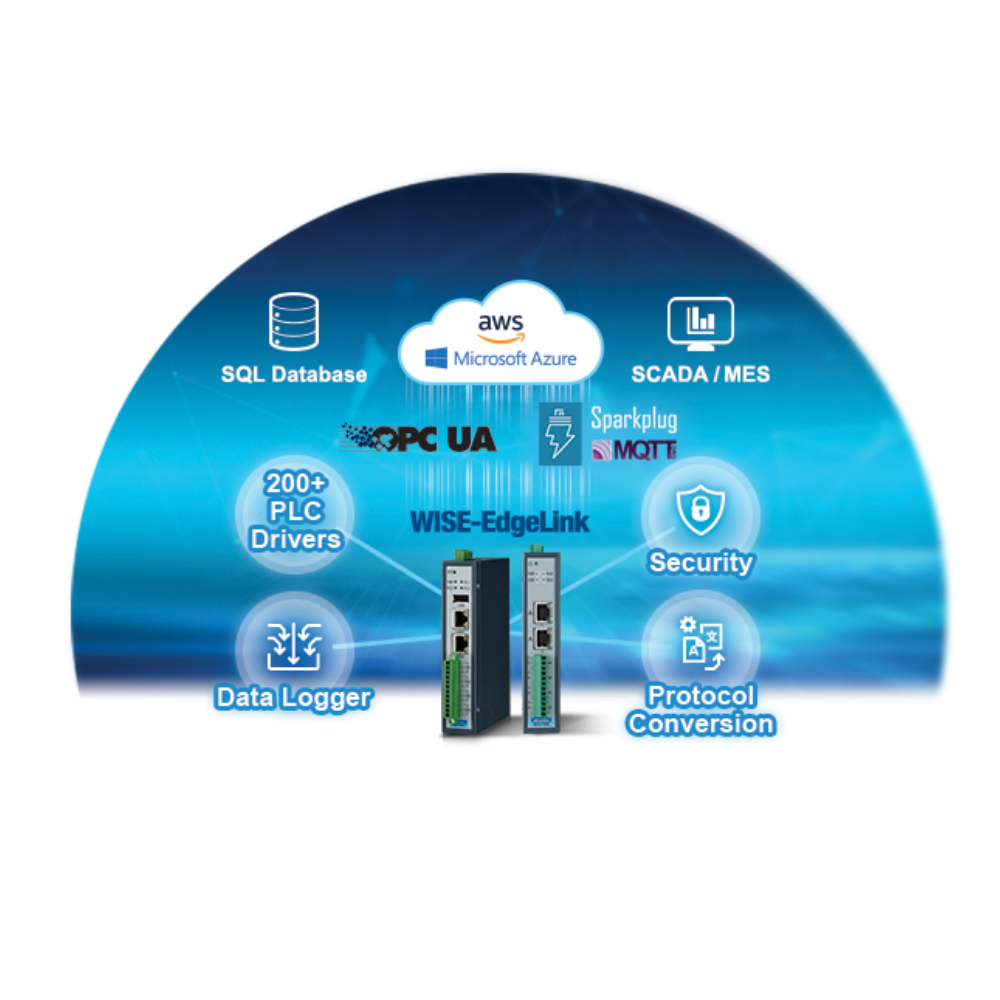

Advanced Protocol Conversion (EdgeLink)

200+ PLC Drivers: Supports 200+ PLC drivers for seamless data extraction from field devices.
Standard Protocols: Supports OPC UA, Modbus, BACnet, Sparkplug MQTT, DNP3, IEC-60870, and IEC-61850 (Goose/MMS by license).
IT/Cloud Integration: Supports MQTT, RESTful APIs, and SQL databases (ODBC/JDBC).
No-Coding Support: Direct connection to Azure, AWS, and Cumulocity without coding.

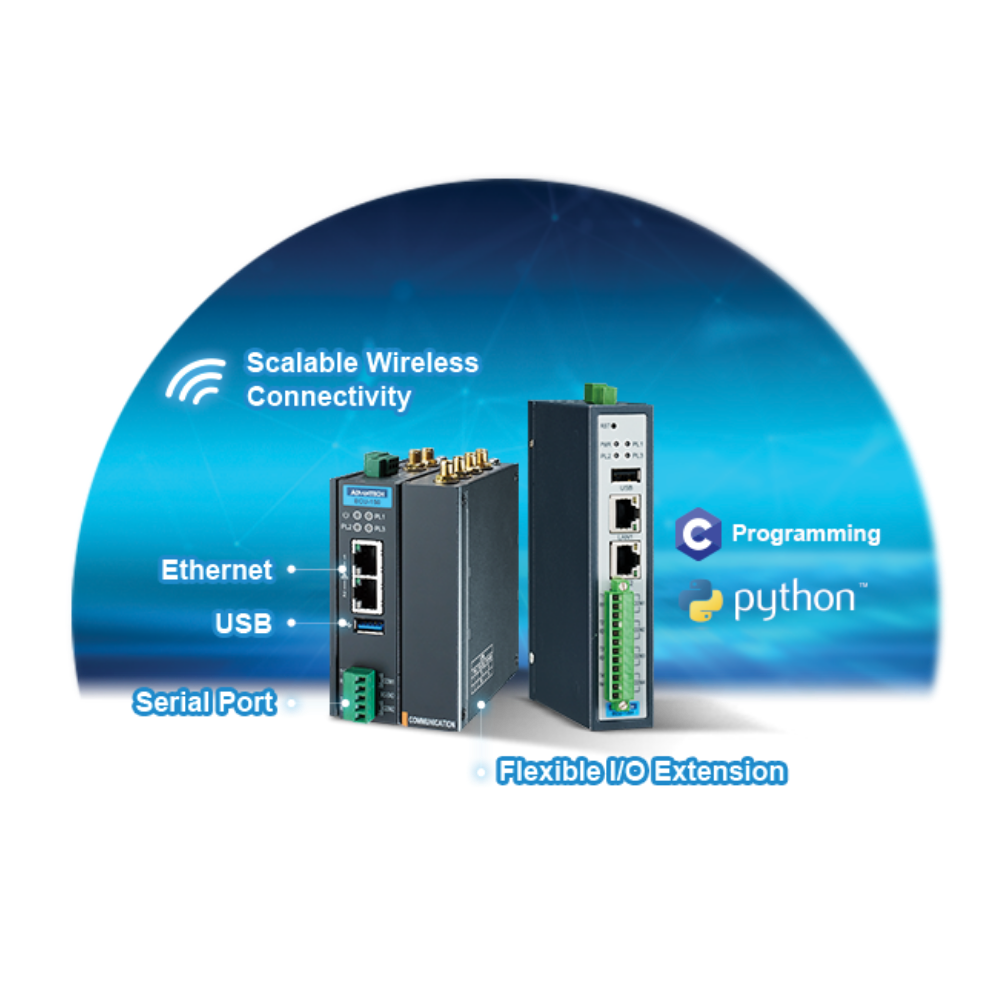

Open Platform and Versatile I/O

Open OS: Linux environment offers an open and standard platform.
Custom Development: Develop applications with C, Python, or 3rd-party libraries.
Multiple Interfaces: Provides Ethernet, serial ports, CANbus and wireless expansion.
Versatile I/O: Includes digital inputs and relay outputs for various field needs.

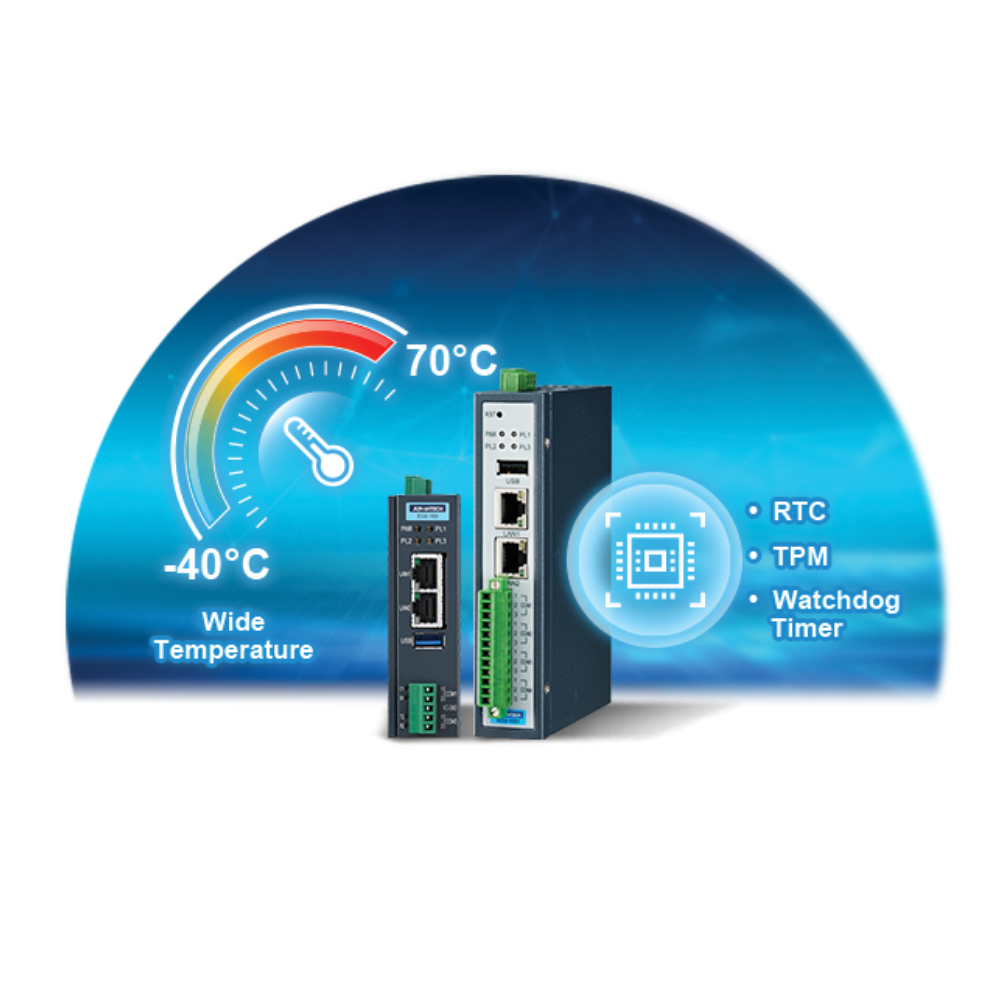

Industrial-Grade Design and High Reliability

Industrial Durability: Designed with industrial-grade ICs with high reliability and isolation protection.
Extreme Temperatures: Wide operating temperature range (-40 to 70°C / -40 to 158°F).
Hardware Security: Battery-powered RTC, independent WDT, and TPM support.

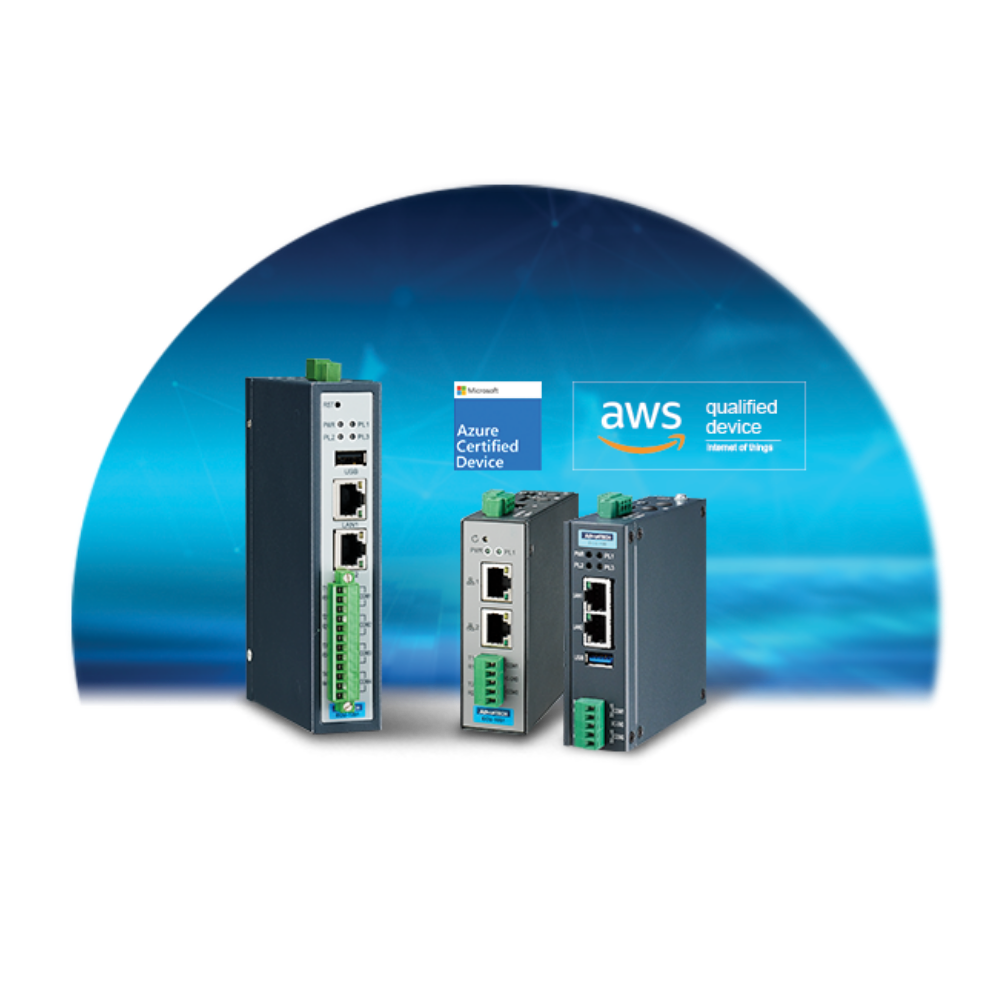

Azure and AWS Certified Device

Certified Integration: Built-in EdgeLink for easy setup of AWS and Azure cloud solutions.
Energy Management: Monitor factory consumption and analyze renewable energy efficiency.

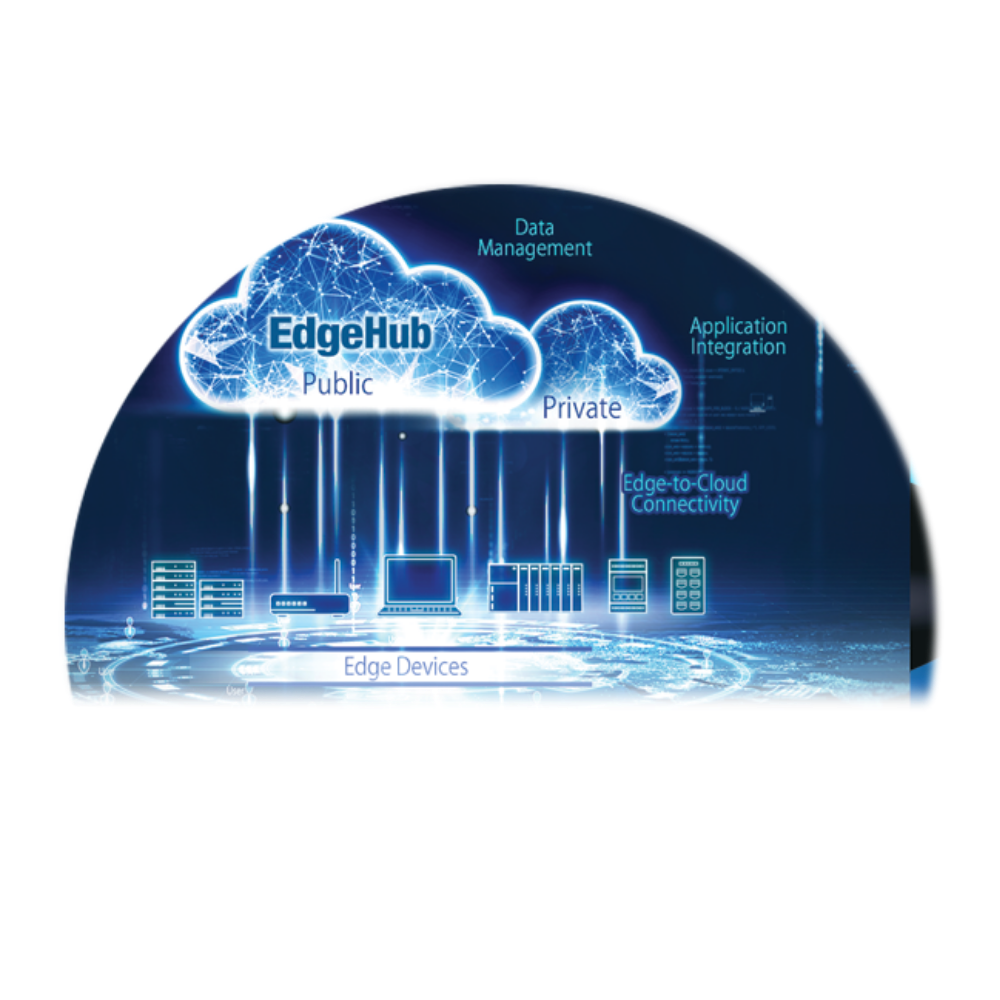

Remote Device Monitoring and Management

EdgeHub: Remote management for OTA, configuration changes, and status checks.
Operational Control: Supports batch image updates, recovery, and device access control.
Data Optimization: Features data correction, pre-processing, and OpenVPN integration.
Lifecycle Management: Simplifies large-scale deployment and device health monitoring.

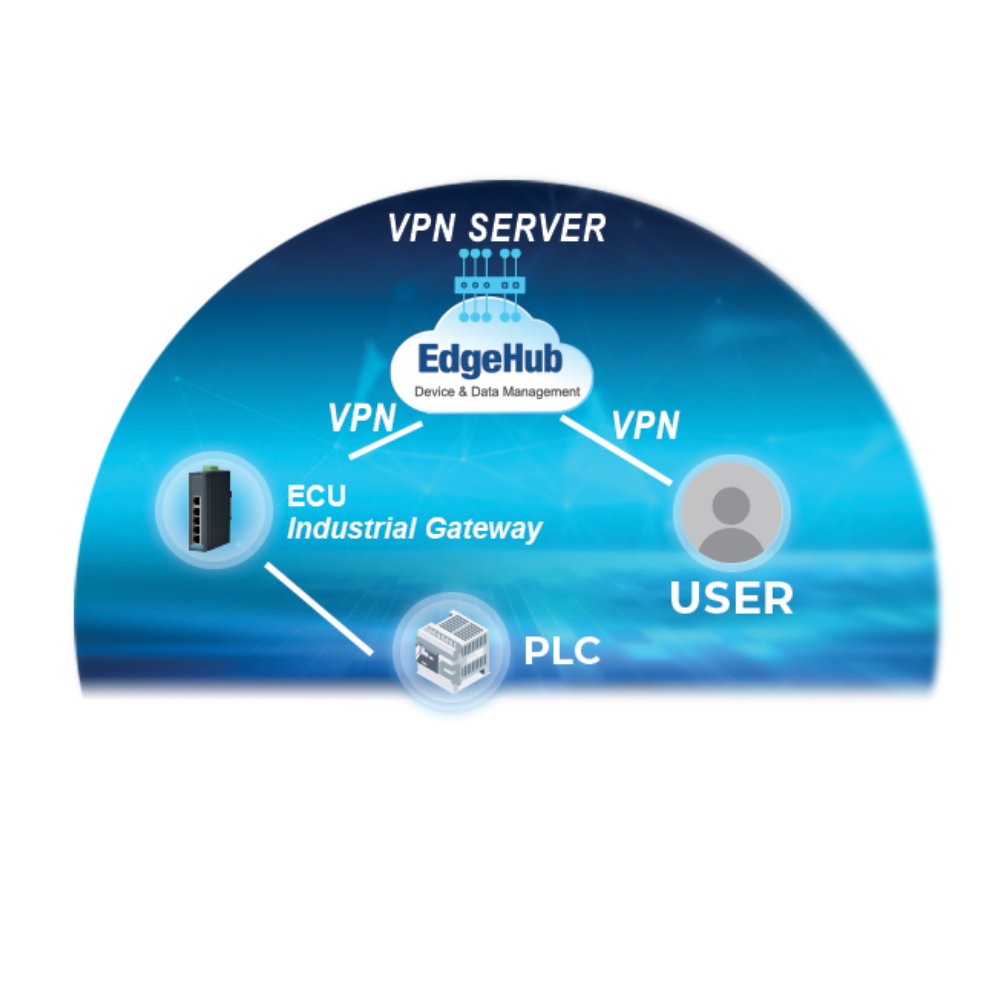

Secure Remote Connectivity

Remote PLC Access: Virtual COM and Virtual Network functions for monitoring without site visits.
Secure Tunneling: Supports VPN protocols for encrypted access to industrial networks.
Remote Maintenance: Allows engineers to troubleshoot and update devices remotely.

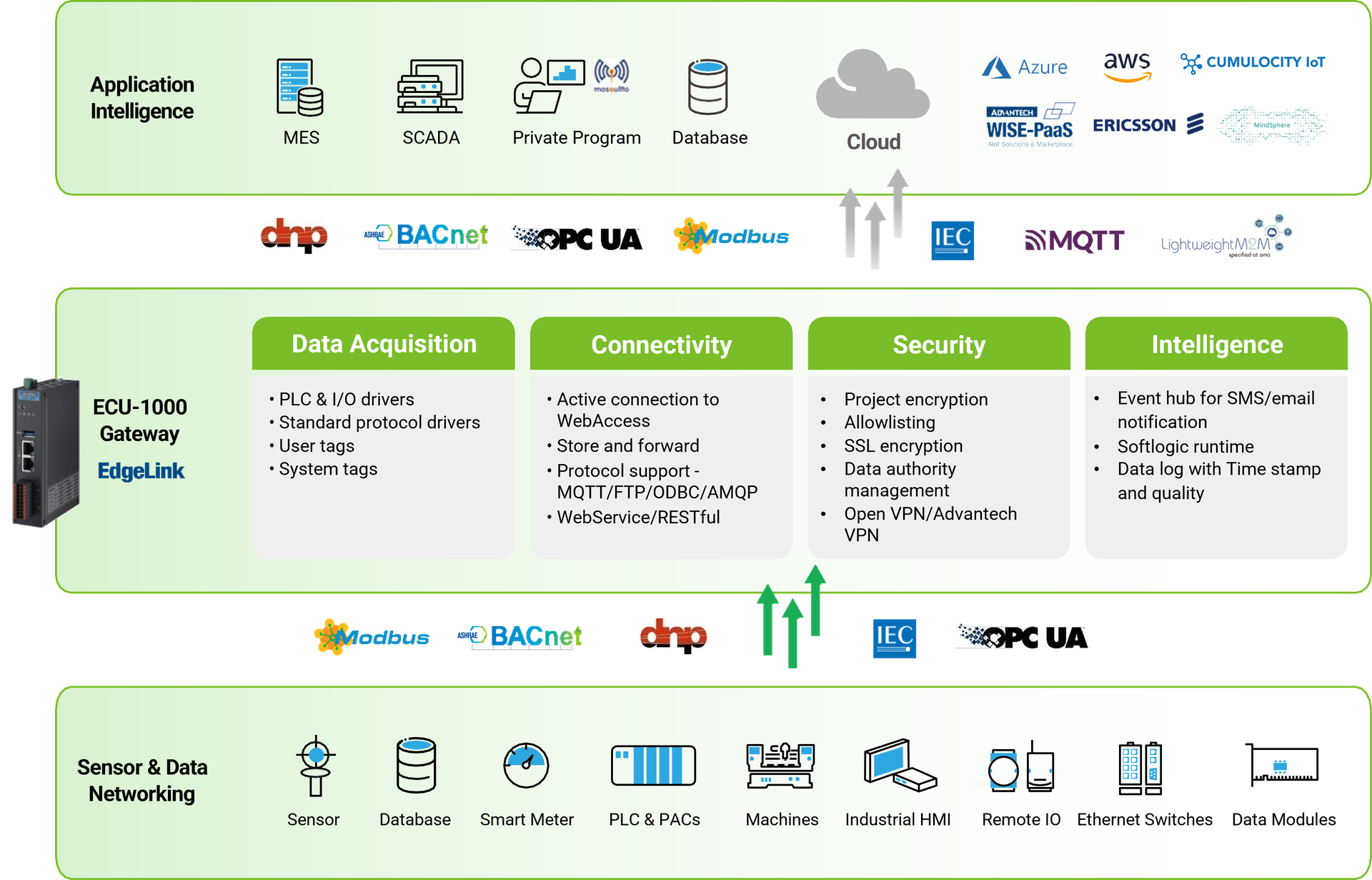

Architecture

Real-World Applications

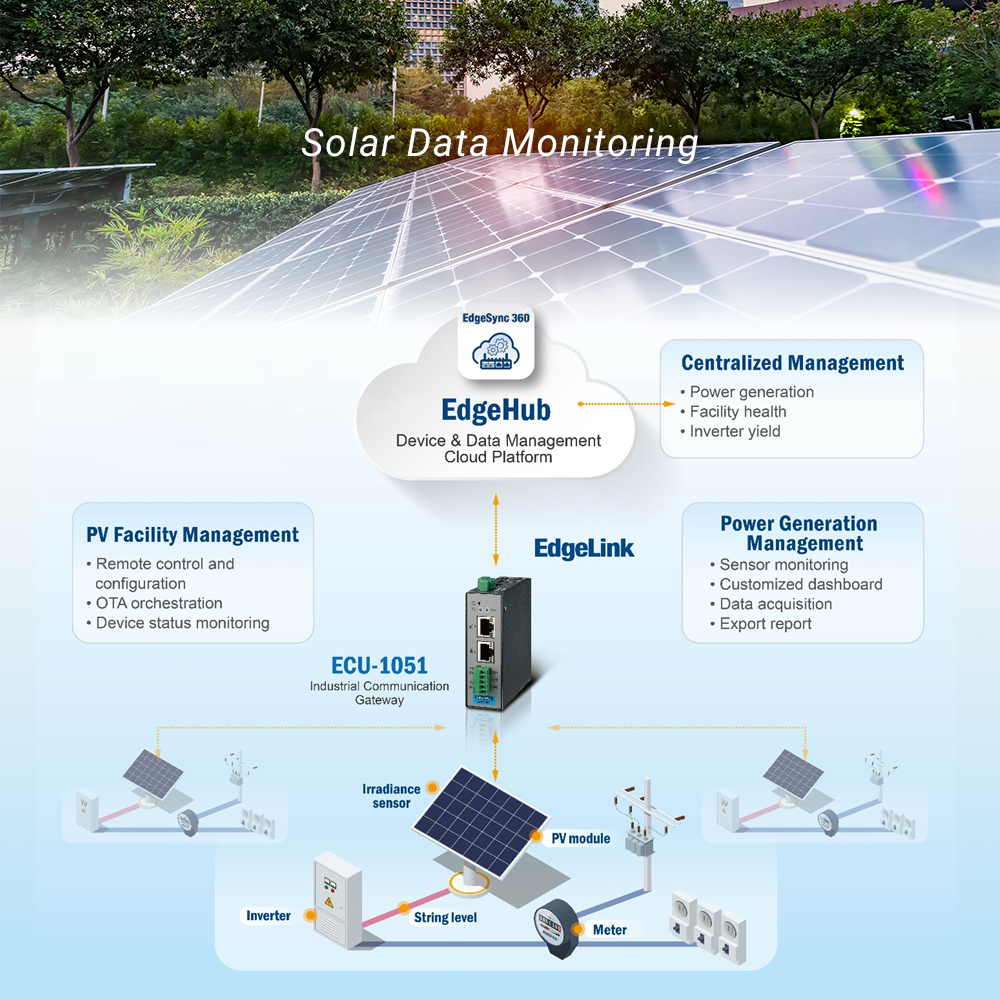

Solar Asset Management – Real-time Energy Monitoring

A building owner needed a reliable floating-solar monitoring platform that aggregates field data from meteorological sensors, inverters, energy meters, and low-voltage transformers into a cloud-based system for energy management.

Challenges	Connect geographically dispersed solar assets with limited installation space. Bridge diverse industrial protocols and ports to gather data from solar assets.

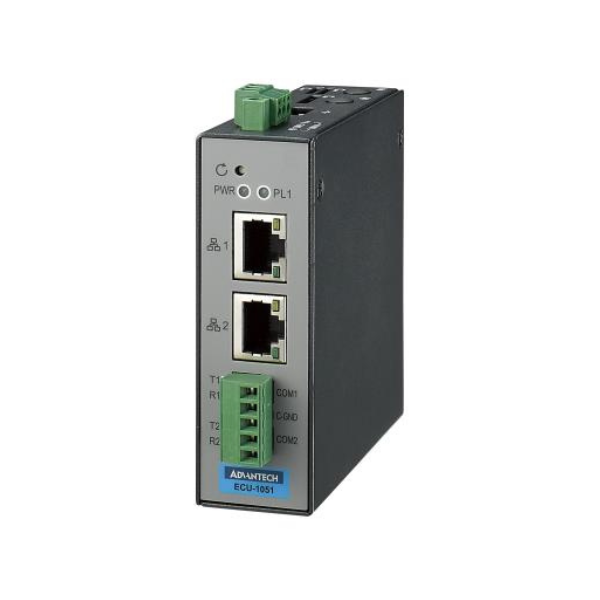

Solution	Hardware: Advantech ECU-1051 Protocol: Multi-interface protocol conversion to standardize data from various machine types Functions: Rugged wide-temperature range -40 to 70°C / -40 to 158°F and watchdog timer integrated to ensure reliability
Connectivity	Southbound: Diverse industrial protocols and legacy ports from solar assets Northbound: Standardized cloud platform connectivity for integrated monitoring
Results	OT-IT Integration: Simplified integration and significantly reduced engineering effort for deployment Solar Asset Monitoring: Scaled IoT infrastructure cost-effectively for historical asset data tracking

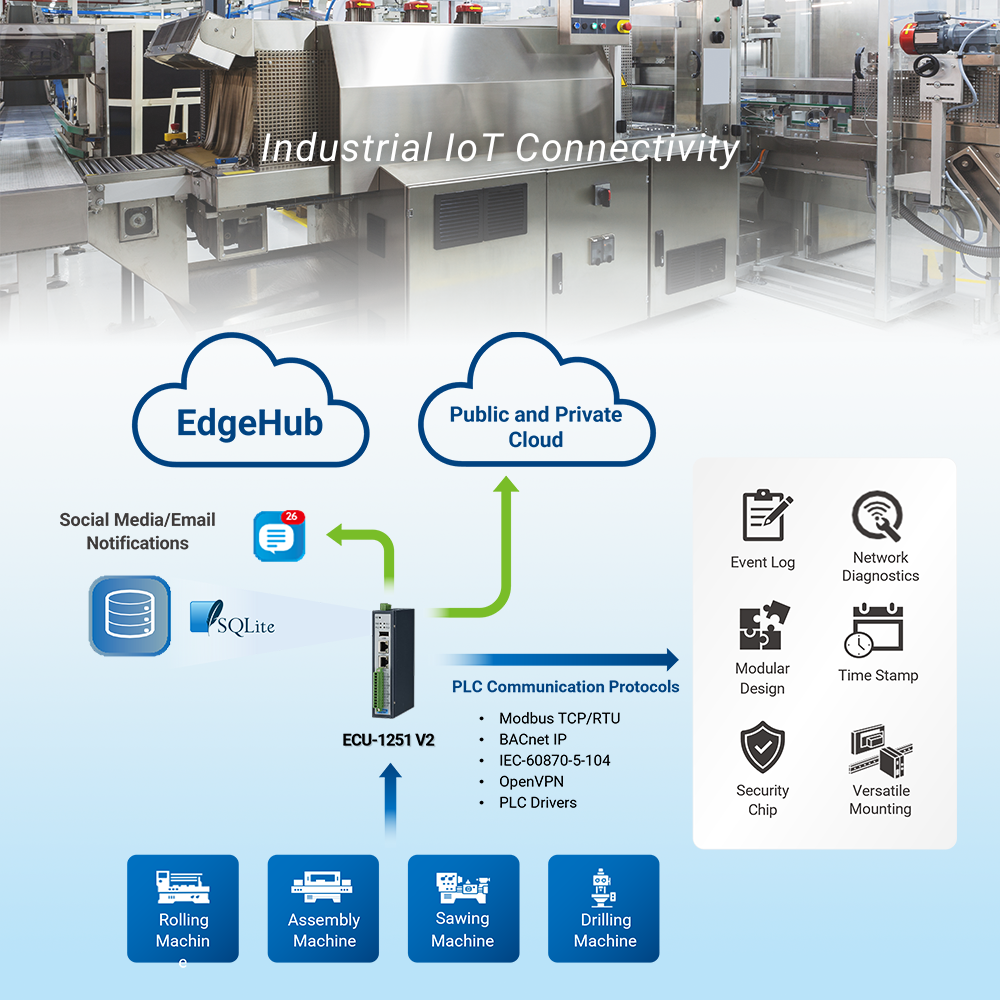

Connecting Dispersed Factory Equipment to the Cloud

A manufacturer wanted to digitalize dispersed factory equipment as a first step toward Industry 4.0, covering assembly, machining, and production lines with many different protocols and ports.

Challenges	Connect geographically dispersed machines with limited installation space. Bridge diverse industrial protocols and ports to gather data from legacy equipment.

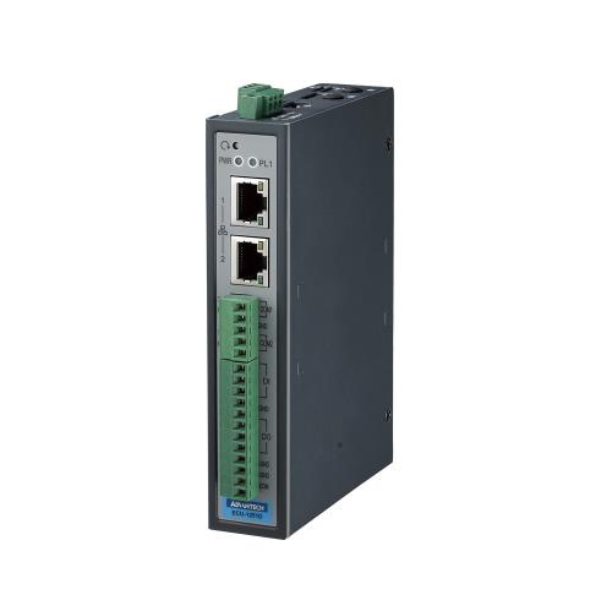

Solution	Hardware: Advantech ECU-1251 V2 Protocol: Multi-interface protocol conversion to standardize data from various machine types Functions: Modular expansion support, edge-to-cloud data bridging, and simplified setup for dispersed assets
Connectivity	Southbound: Diverse industrial protocols and legacy ports from factory equipment Northbound: Standardized cloud platform connectivity for integrated monitoring
Results	OT-IT Integration: Simplified integration and significantly reduced engineering effort for deployment Data Tracking: Enabled historical data tracking and cost-effective scaling of IoT infrastructure

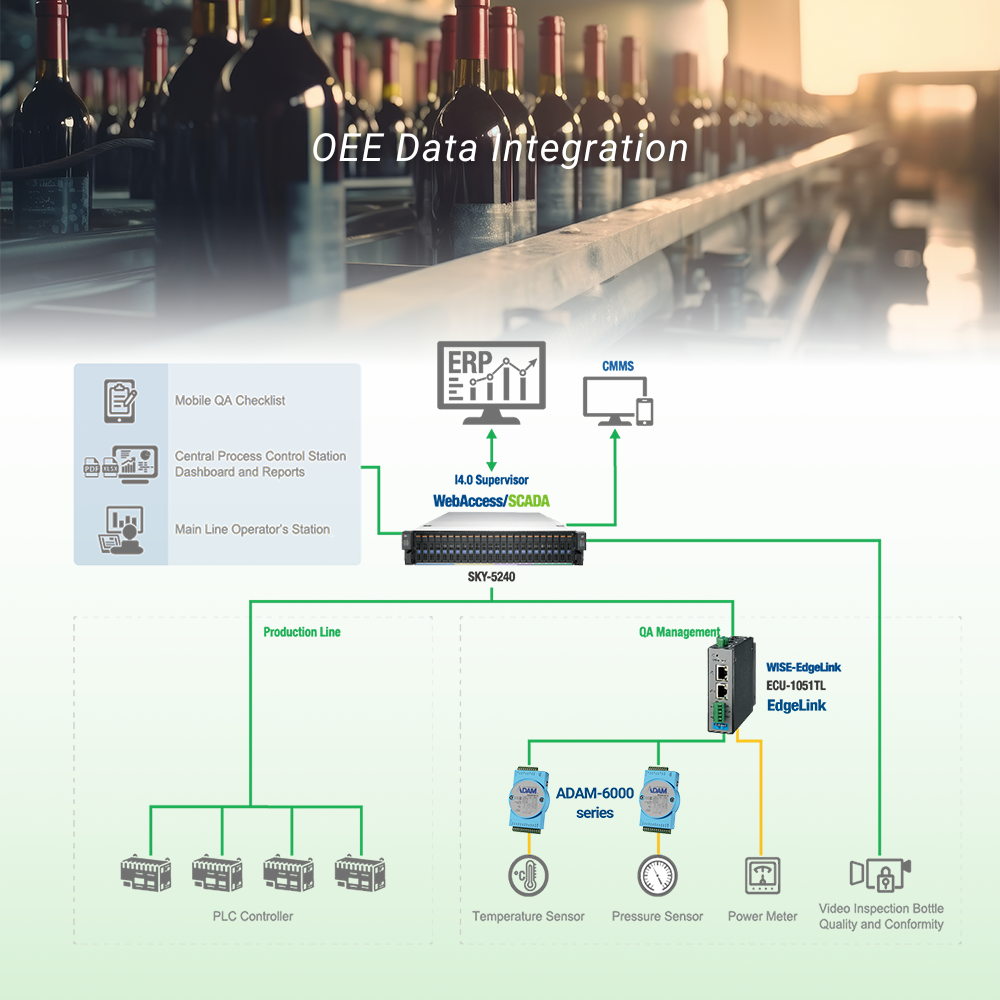

OEE for Wine Factory – Less Downtime, Paperless Operation

A high-volume Spumante producer wanted an OEE system for its bottling and packaging lines that could monitor OEE and energy consumption in real time and eliminate paper-based processes.

Challenges	Monitor OEE and energy consumption across two automated production lines. Integrate PLCs, cameras, HMIs, tablets, CMMS, ERP, and a remote cloud platform.
Solution	Hardware: Advantech ECU-1051TL Protocol: Seamless connection of devices via standard protocols and 200+ drivers Functions: Combined Advantech WebAccess/SCADA for intelligent gateway roles and browser-based visualization
Connectivity	Southbound: Integrated field data from sensors, PLCs, and production line equipment Northbound: Standardized connection to WebAccess/SCADA and remote cloud platforms
Results	OEE Dashboard: Delivered a browser-based OEE dashboard with centralized visibility Operational Efficiency: Reduced equipment downtime and paperwork by enabling real-time data tracking

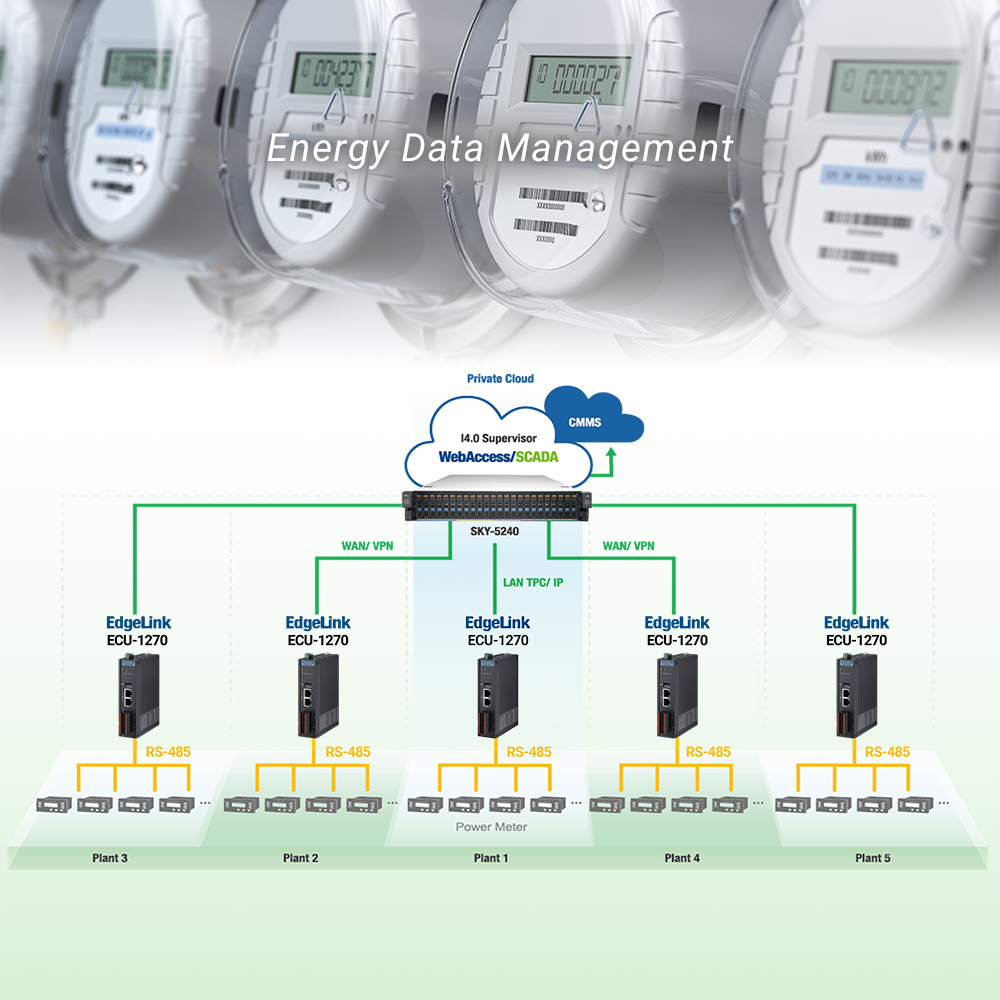

Cost-Effective Energy Monitoring for Eyewear Manufacturer

An Italian eyewear manufacturer, facing some of the world’s highest industrial electricity prices, needed a way to reduce factory energy costs.

Challenges	Monitor and manage energy usage across six factories while controlling deployment costs. Enable future expansion without requiring frequent and costly system redesigns.

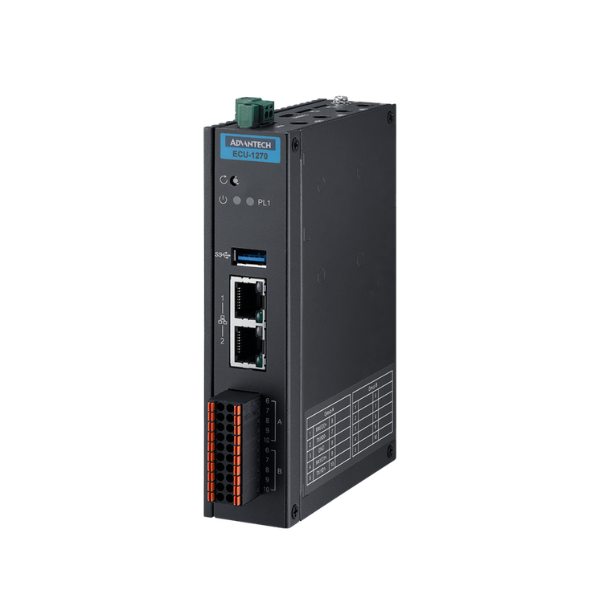

Solution	Hardware: Advantech ECU-1270 Protocol: EdgeLink with support for Modbus and various industrial standards Functions: Local data buffering and encrypted transmission (VPN)
Connectivity	Southbound: Data acquisition from field devices via Ethernet and RS-485 interfaces Northbound: Secure data upload to central energy-monitoring and CMMS systems via WAN/VPN
Results	Cost Reduction: Identified inefficiencies through centralized monitoring to reduce overall energy costs Reliability: Provided reliable data collection during network interruptions with mobile-friendly performance tracking
